Double Glass 1500V Solar Module Custom

PVB Double Glass PV Module, Select Fuying New Materkals!

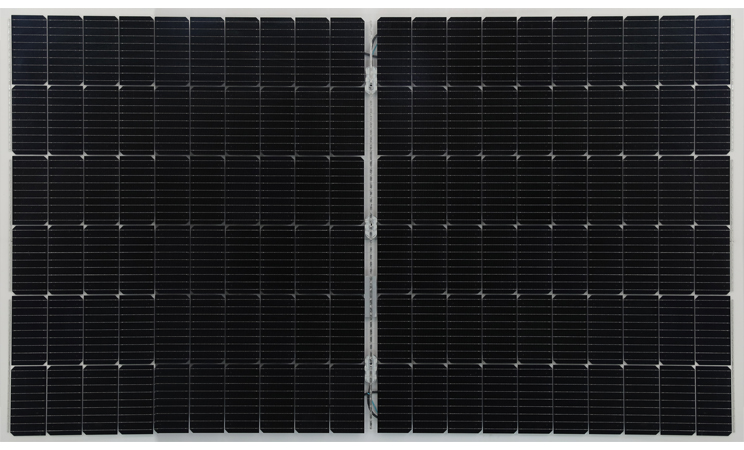

Double Glass 1500V  Solar Module

Double Glass 1500V Solar Module

Half-cell battery technology, brand new circuit design.

Super frame, can bear 5400Pa mechanical load test.

Drainage system design to prevent deformation and cracking of the frame due to freezing.

Significantly reduce the risk of hot spots and reduce power loss.

Excellent anti-PID performance and strict quality control ensure the high reliability of the product.


  • parameter
  • description
Category model FY166M370-60
60 version (9BB-166) Standard test conditions:AM1.5,E=1000W/m2,TC=25℃
Pmax 370W Maximum system voltage 1500V
Tolerance range 0~5W Maximum system current 20A
Vpm 34.0V Operating temperature -40~85℃
Ipm 10.89A Cell type Monocrystalline silicon
Voc 41.2V Weight (Kg) 22kg
Isc 11.41A Specification (mm) 1785*1046*5.3

Jiaxing Fuying Composite Materials Co., Ltd.

Jiaxing Fuying Composite Materials Co., Ltd. is one of the professional China Double Glass 1500V Solar Module suppliers, a wholly-owned subsidiary of ZHEJIANG DECENT NEW MATERIAL CO.,LTD. with a registered capital of 200 million yuan. The company is located in Tongxiang, the permanent site of the World Internet and the bridgehead of Zhejiang to Shanghai.

As a famous ODM Double Glass 1500V Solar Module company, the company is committed to building a composite functional film, custom Double Glass 1500V Solar Module, PVB double glass photovoltaic module application demonstration and promotion base, and a PVB research institute, forming a marketing center, industry conference center, product display, and a PVB composite functional film and photovoltaic product manufacturing base. Promote the application of PVB multi-functional membrane to the field of photovoltaics, and promote the products to the world.
